Unser Know-how basiert auf langjähriger Tradition, Erfahrungen, modernen Technologien und qualifizierten Mitarbeitern. Wir verfügen über einen komplexen Umfang von Fertigungstechnologien, die es uns ermöglichen, die komplette Herstellung von Teilen für unsere Kunden mit eigenen Kräften und somit auch ohne zwingende externe Kooperation sicherzustellen.
max. Länge 3.150 mm, Blechdicke max. 10 mm
max. Länge 1.600 mm, Blechdicke max. 20 mm
CNC-Rundbiegemaschine – max. Länge 2.500 mm, Blechdicke max. 10 mm
Cloos – Arbeitsbereich 8.000 x 1.000 x 1.000 mm
Cloos – Arbeitsbereich 2.500 x 1.000 x 1.000 mm
TIG
MIG
MAG
Punktschweißen
Qualifiziertes (WPQR) Schweißen von einfachen Schweißnähten bis zu Schweißnähten in höchster Qualität für Schienenfahrzeuge und Stahlkonstruktionen.
Bolzenschweißen mit Spitzenzündung mithilfe der Methode 786 – Größen M3–M5 aus Aluminiumlegierungen und korrosionsbeständigem Stahl am Blech mit Stärke ab 0,5 mm.
Qualifizierte Schweißnahtprüfung mit Sichtprüfung und für Oberflächenfehler mit Penetrations- und Magnetprüfung. Die Prüfungen werden vom firmeneigenen zertifizierten Prüfpersonal, Niveau 2, laut ČSN EN ISO 9712 durchgeführt.
Mögliche Sicherstellung der Volumenprüfung der Schweißnähte mit Ultraschall- und Röntgenprüfung durch eine externe, zertifizierte Prüfstelle.

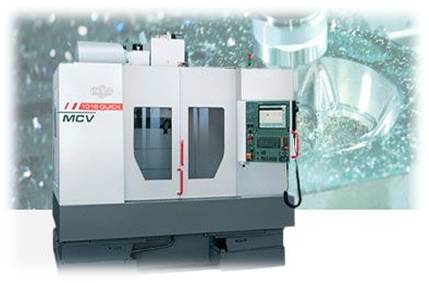

MCV 1016 – Vertikales Fräszentrum
Tischabmessungen 1.300 x 600 mm
Max. Gewicht des Werkstücks 700 kg
Arbeitsbereich
X-Achse – 1.016 mm
Y-Achse – 710 mm
Z-Achse – 610 mm

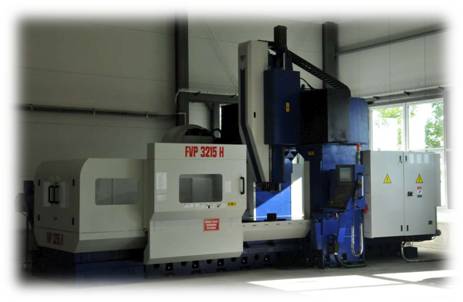

FVP 3215 – Portalbearbeitungszentrum
Tischabmessungen 3.000 x 1.500 mm
Max. Gewicht des Werkstücks 7.000 kg
Arbeitsbereich
X-Achse – 3.200 mm
Y-Achse – 1.500 mm
Z-Achse – 1.000 mm

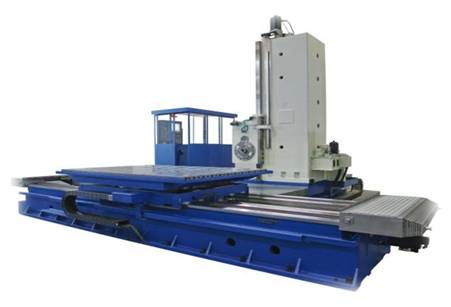

TOS WHQ-13 – Horizontale Fräs- und Bohrmaschine
Tischaufspannfläche 1.800 x 2.500 mm
Max. Tischbelastung: 12.000 kg
Querbewegung des Tischschlittens (X) 4.000 mm
Querbewegung des Spindelstocks (Y) 2.500 mm
Längsbewegung der Ständerschlitten (Z) 1.600 mm
Spindelvorschub (W) 800 mm
Schleifmaschine COSTA MD7-CVV 1650
Maximale Arbeitsbreite der Maschine 1.650mm
Zu bearbeitende Blechdicken 0,5 – 160 mm
